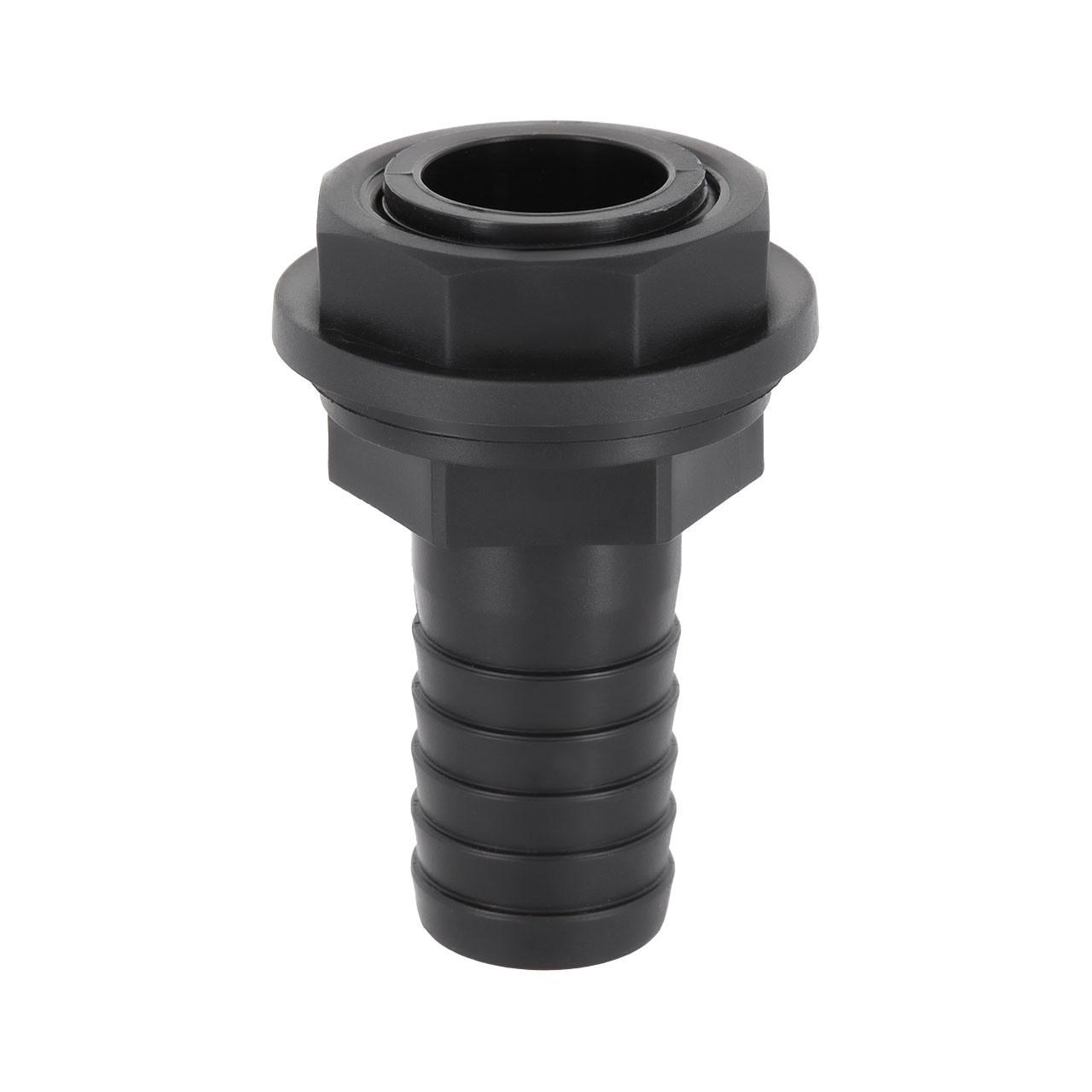

Tankdurchführung Außengewinde x Schlauchtülle
- Artikel-Nr.: RK80250
- Gewicht: 0,013 kg
- EAN/GTIN: 4260612653391
Varianten

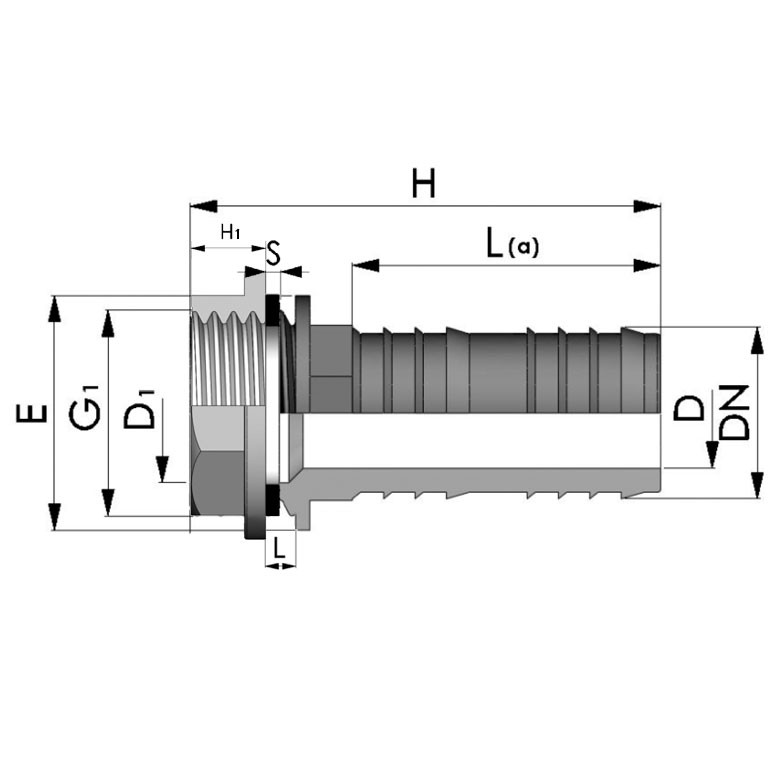

| Artikelnummer | Größe | DN | D | D1 | H | L(a) | E | L | H1 | S | G(1) | Gewicht |
Preis
(inkl. 19% MwSt.) |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
RK80250
|
1/2" AG x 16mm (5/8") | 16 (5/8") | 10 | 14 | 64,5 | 26 | 28 | 1,5 | 15 | 2,5 | 1/2" |
0.013 kg
|
5,49 €
|
|
|
RK80251
|
1/2" AG x 16mm (5/8") | 16 (5/8") | 10 | 14 | 64,5 | 26 | 28 | 1,5 | 15 | 2,5 | 1/2" |
0.015 kg
|
5,59 €
|
|
|
RK80252
|
1/2" AG x 20mm (25/32") | 20 (25/32") | 13 | 14 | 64 | 26 | 28 | 1,5 | 15 | 2,5 | 1/2" |
0.017 kg
|
5,69 €
|
|
|
RK80253
|
1/2" AG x 25mm (1") | 25 (1") | 13,5 | 14,5 | 68,5 | 37 | 28 | 1,5 | 15 | 2,5 | 1/2" |
0.017 kg
|
5,79 €
|
|
|
RK80254
|
3/4" AG x 10mm (3/8") | 10 (3/8") | 6 | 19 | 50,5 | 22 | 31 | 2 | 15 | 2,5 | 3/4" |
0.013 kg
|
5,89 €
|
|
|
RK80255
|
3/4" AG x 12mm (15/32") | 12 (15/32") | 7,5 | 18 | 61 | 27 | 33 | 2 | 15 | 2,5 | 3/4" |
0.017 kg
|
5,89 €
|
|
|
RK80256
|
3/4" AG x 13mm (1/2") | 13 (1/2") | 8 | 18 | 58,5 | 26 | 33 | 2 | 15 | 2,5 | 3/4" |
0.018 kg
|
5,89 €
|
|
|
RK80257
|
3/4" AG x 16mm (5/8") | 16 (5/8") | 10 | 18 | 67 | 26 | 33 | 2 | 15 | 2,5 | 3/4" |
0.019 kg
|
5,89 €
|
|
|
RK80258
|
3/4" AG x 19mm (3/4") | 19 (3/4") | 14,5 | 18 | 67 | 30,5 | 33 | 2 | 15 | 2,5 | 3/4" |
0.019 kg
|
6,09 €
|
|
|
RK80259
|
3/4" AG x 20mm (25/32") | 20 (25/32") | 13 | 18 | 65 | 31 | 33 | 2 | 15 | 2,5 | 3/4" |
0.021 kg
|
6,09 €
|
|
|
RK80260
|
3/4" AG x 25mm (1") | 25 (1") | 19 | 19 | 73,5 | 37 | 33 | 2 | 15 | 2,5 | 3/4" |
0.022 kg
|
6,39 €
|
|
|
RK80261
|
1" AG x 19mm (3/4") | 19 (3/4") | 14,5 | 22,5 | 69 | 30,5 | 41,5 | 3 | 15 | 2,5 | 1" |
0.023 kg
|
6,79 €
|
|
|
RK80262
|
1" AG x 20mm (25/32") | 20 (25/32") | 13 | 22,5 | 70 | 30 | 41,5 | 3 | 15 | 2,5 | 1" |
0.032 kg
|
6,79 €
|
|
|
RK80263
|
1" AG x 22mm (7/8") | 22 (7/8") | 17 | 24 | 69,5 | 37 | 38,5 | 3 | 15 | 2,5 | 1" |
0.027 kg
|
6,89 €
|
|
|
RK80264
|
1" AG x 25mm (1") | 25 (1") | 19 | 22,5 | 75,5 | 36 | 41,5 | 3 | 15 | 2,5 | 1" |
0.032 kg
|
6,99 €
|
|
|
RK80266
|
1" AG x 30mm (1 3/16") | 30 (1 3/16") | 22,5 | 23 | 79,5 | 36 | 41,5 | 3 | 15 | 2,5 | 1" |
0.036 kg
|
7,19 €
|
|
|
RK80267
|
1" AG x 32mm (1 1/4") | 32 (1 1/4") | 22,5 | 23 | 79,5 | 36 | 41,5 | 3 | 15 | 2,5 | 1" |
0.039 kg
|
7,19 €
|
|
|
RK80268
|
1 1/4" AG x 20mm (25/32") | 20 (25/32") | 13 | 32,5 | 72,5 | 30 | 47,5 | 4 | 15 | 2,5 | 1 1/4" |
0.034 kg
|
7,79 €
|
|
|
RK80269
|
1 1/4" AG x 20mm (25/32") | 25 (1") | 19,5 | 32,5 | 75 | 37 | 47,5 | 4 | 15 | 2,5 | 1 1/4" |
0.035 kg
|
7,79 €
|
|
|
RK80270
|
1 1/4" AG x 30mm (1 3/16") | 30 (1 3/16") | 24,5 | 32,5 | 81 | 43 | 47,5 | 4 | 15 | 2,5 | 1 1/4" |
0.037 kg
|
7,79 €
|
|
|
RK80271
|
1 1/4" AG x 32mm (1 1/4") | 32 (1 1/4") | 25,5 | 32,5 | 81 | 43 | 47,5 | 4 | 15 | 2,5 | 1 1/4" |
0.039 kg
|
7,79 €
|
|
|
RK80272
|
1 1/4" AG x 35mm (1 3/8") | 35 (1 3/8") | 29 | 32,5 | 81 | 43 | 47,5 | 4 | 15 | 2,5 | 1 1/4" |
0.038 kg
|
7,89 €
|
|
|
RK80273
|
1 1/4" AG x 38mm (1 1/2") | 38 (1 1/2") | 31 | 32,5 | 83 | 43,5 | 47,5 | 4 | 15 | 2,5 | 1 1/4" |
0.041 kg
|
7,99 €
|
|
|
RK80274
|
1 1/4" AG x 40mm (1 9/16") | 40 (1 9/16") | 11 | 32,5 | 83 | 43,5 | 47,5 | 4 | 15 | 2,5 | 1 1/4" |
0.045 kg
|
8,49 €
|
|
|
RK80275
|
1 1/2" AG x 25mm (1") | 25 (1") | 19,5 | 38,5 | 75 | 37 | 54,5 | 6 | 15 | 2,5 | 1 1/2" |
0.043 kg
|
8,99 €
|
|
|
RK80276
|
1 1/2" AG x 35mm (1 3/8") | 35 (1 3/8") | 28 | 38,5 | 83 | 43,5 | 54,5 | 6 | 15 | 2,5 | 1 1/2" |
0.049 kg
|
8,99 €
|
|
|
RK80277
|
1 1/2" AG x 38mm (1 1/2") | 38 (1 1/2") | 31 | 38,5 | 83 | 43,5 | 54,5 | 6 | 15 | 2,5 | 1 1/2" |
0.049 kg
|
9,99 €
|
|
|
RK80278
|
1 1/2" AG x 40mm (1 9/16") | 40 (1 9/16") | 33 | 38,5 | 83 | 43,5 | 54,5 | 6 | 15 | 2,5 | 1 1/2" |
0.05 kg
|
10,99 €
|
|
|
RK80279
|
1 1/2" AG x 50mm (2") | 50 (2") | 42 | 38,5 | 84,5 | 44 | 54,5 | 6 | 15 | 2,5 | 1 1/2" |
0.061 kg
|
11,99 €
|
|
|
RK80280
|
2" AG x 50mm (2") | 50 (2") | 42 | 48,5 | 88,5 | 44 | 65 | 7 | 15 | 2,5 | 2" |
0.074 kg
|
12,49 €
|
|
|
RK80281
|
2" AG x 60mm (2 3/8") | 60 (2 3/8") | 51,5 | 48,5 | 91 | 46,5 | 65 | 7 | 15 | 2,5 | 2" |
0.088 kg
|
12,99 €
|
